800bbl Ecotanks

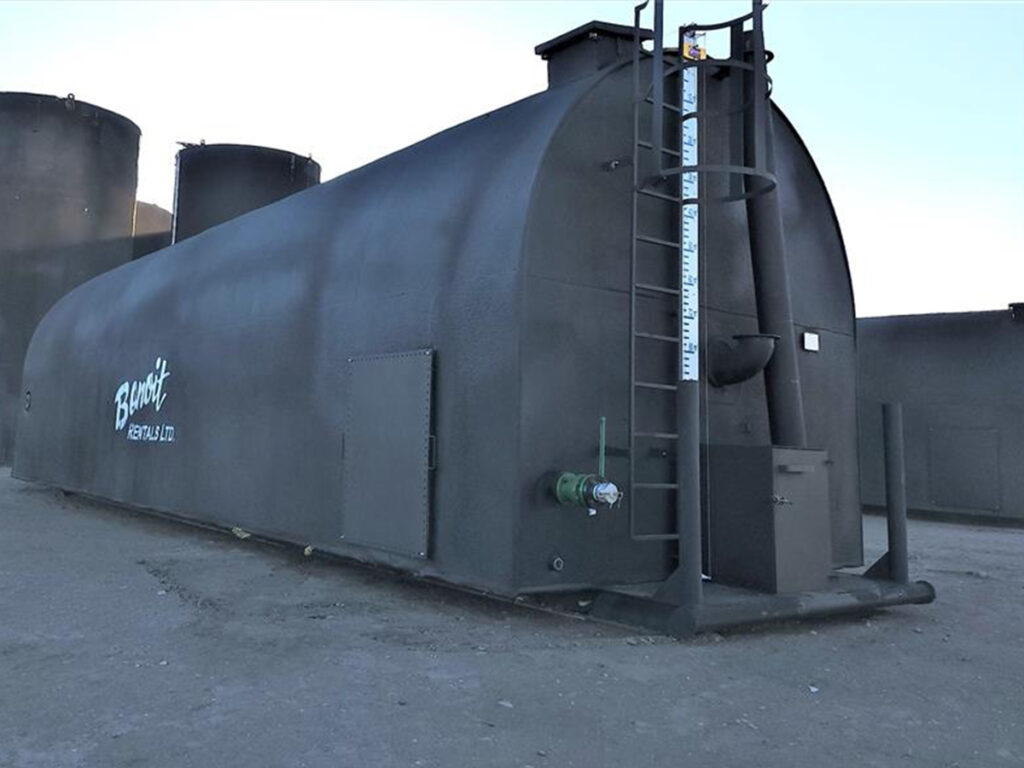

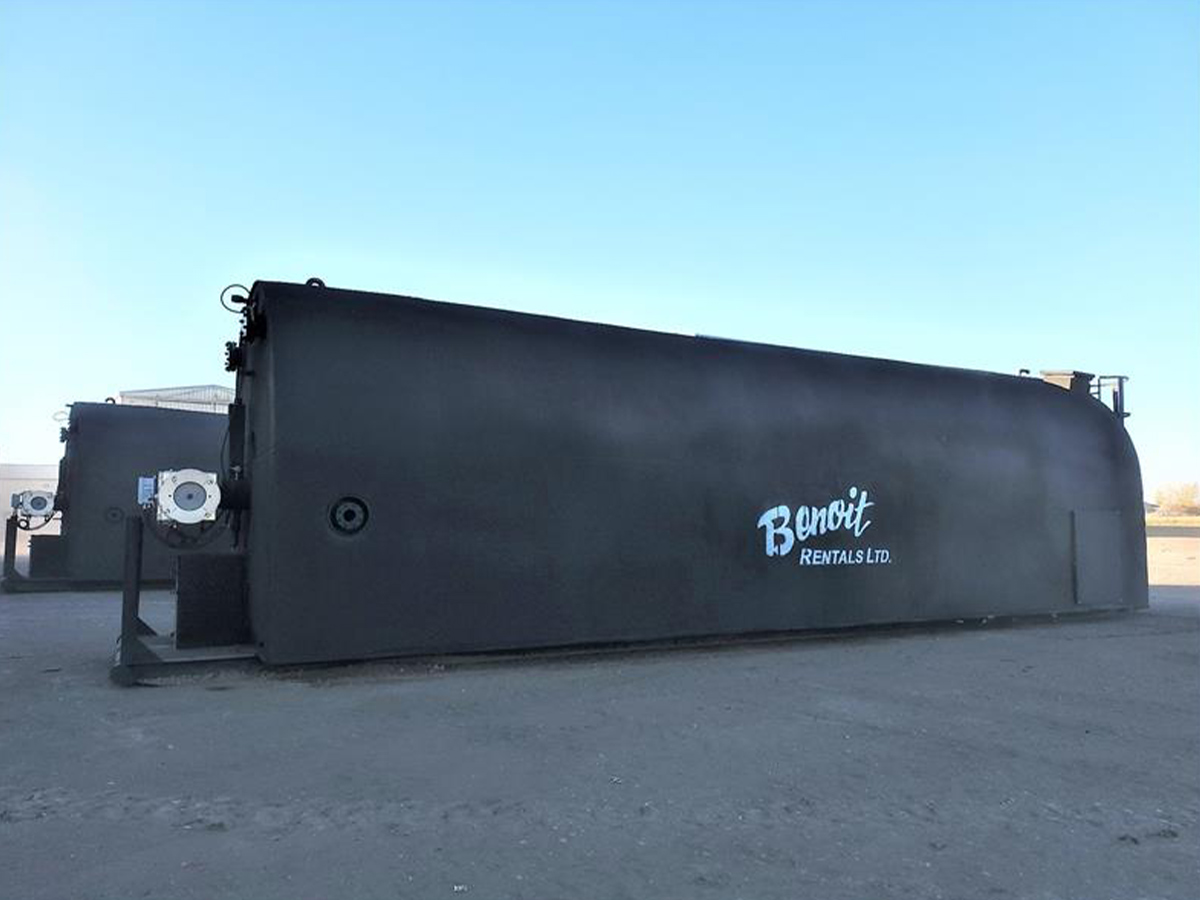

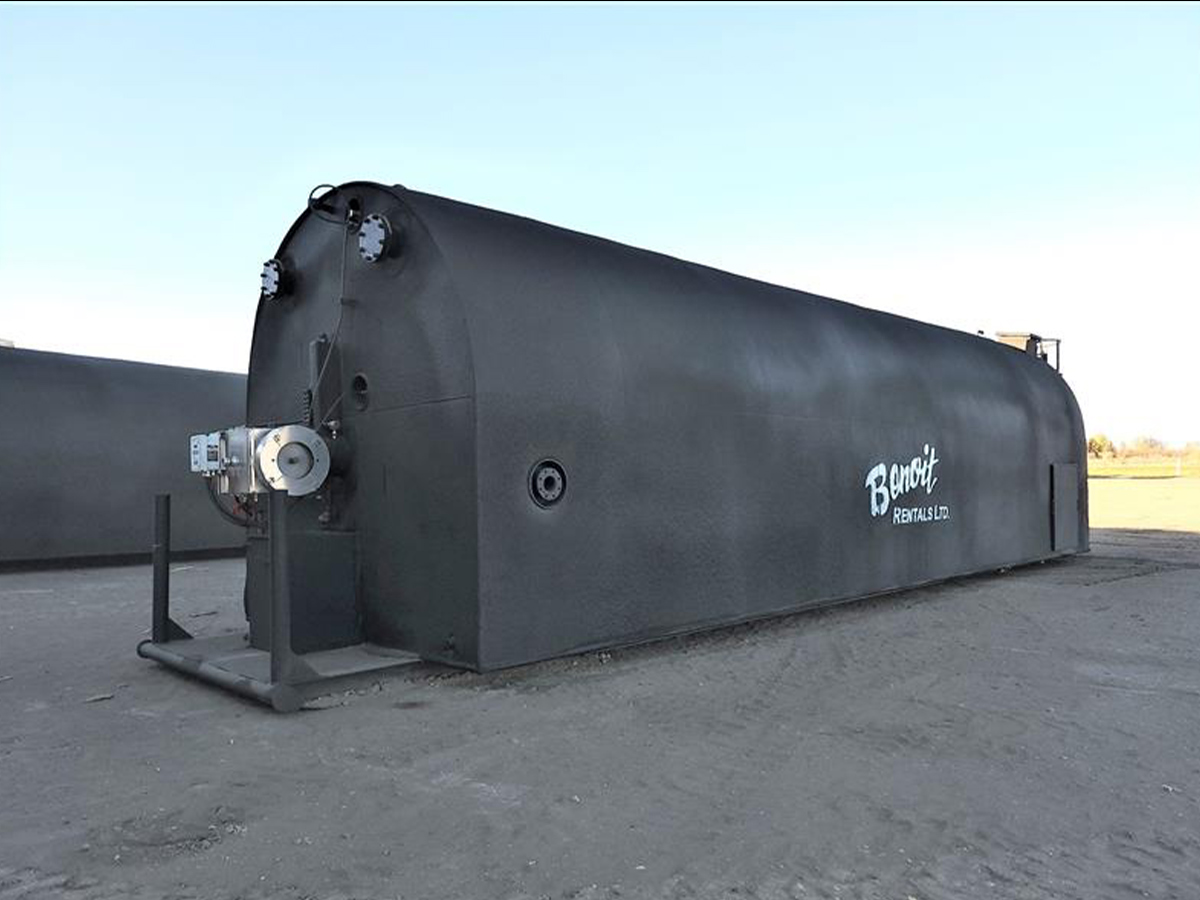

Our Standard 800bbl (128m3) Horizontal Production Tanks are built to API 12F and are designed to be a “plug and play” production unit. The full system is setup with (2) horizontal 400bbl insulated tanks which are fully self-contained and AER Compliant within the integrated skid/containment. Units are fully skidded and are very easily setup onsite within hours of arrival.
Truckout Valving etc is very easily accessed through the built in enclosure and platforms.
All of our stock 800bbl horizontal tanks are standardly equipped with the following:
- Built to API12F
- 800bbl (128m3) Capacity
- Skid/Tank Dimensions:12’ Wide x 42’ Long Triple Member Skid c/w loading ears
- Pilots not required to transport.
- Dual Walled Fully Contained Production Tank (Fully G55 Compliant)
- (2) 8” Hawkeye Sweet Service Thief Hatches set at 16 oz. psi & 0.4 oz. Vacuum
- (1) Sweet Service Gauge-board Systems c/w gauge board in M3 increments
- (1) 3ft x 6ft Valve Enclosure c/w doors
- (1) 4” #150 RFWN Nozzles (SKIM or OIL OUTLET Internal Riser to 7ft 9”)
- (1) 4” #150 RFWN Nozzles (WATER OUTLET Internal Downcomer to 6”)
- (1) 4” #150 RFWN Nozzles (OUTLET Internal Riser to 4.5ft)
- (4) 1” Sample Connections (3’,4.5ft, 7ft 9” and 9ft)
- (1) 3” Suckout c/w Camlok Connection for Draining Enclosure
- (2) 4” #150 RFWN Nozzles c/w 4” Gate Valves – STING VALVE
- (1) 4” #150 RFWN Nozzle (INLET c/w internal spreader to middle of tank)
- (1) 2” #150 RFWN Nozzle (Interstitial Space Drain)
- (1) 8” #150 RFWN Nozzle (SPARE, SPILLOVER CONNECTION)
- (3) 2” Collars (HLSD Tank, LLSD Burner, HLSD Interstitial Space)
- (2) 4” Collars on Roof (GAS OUTLETS)
- (1) 2” Collar c/w Site Glass (Interstitial Space Monitoring)
- (1) 3ft x 4ft Side Manway (Tank Access)

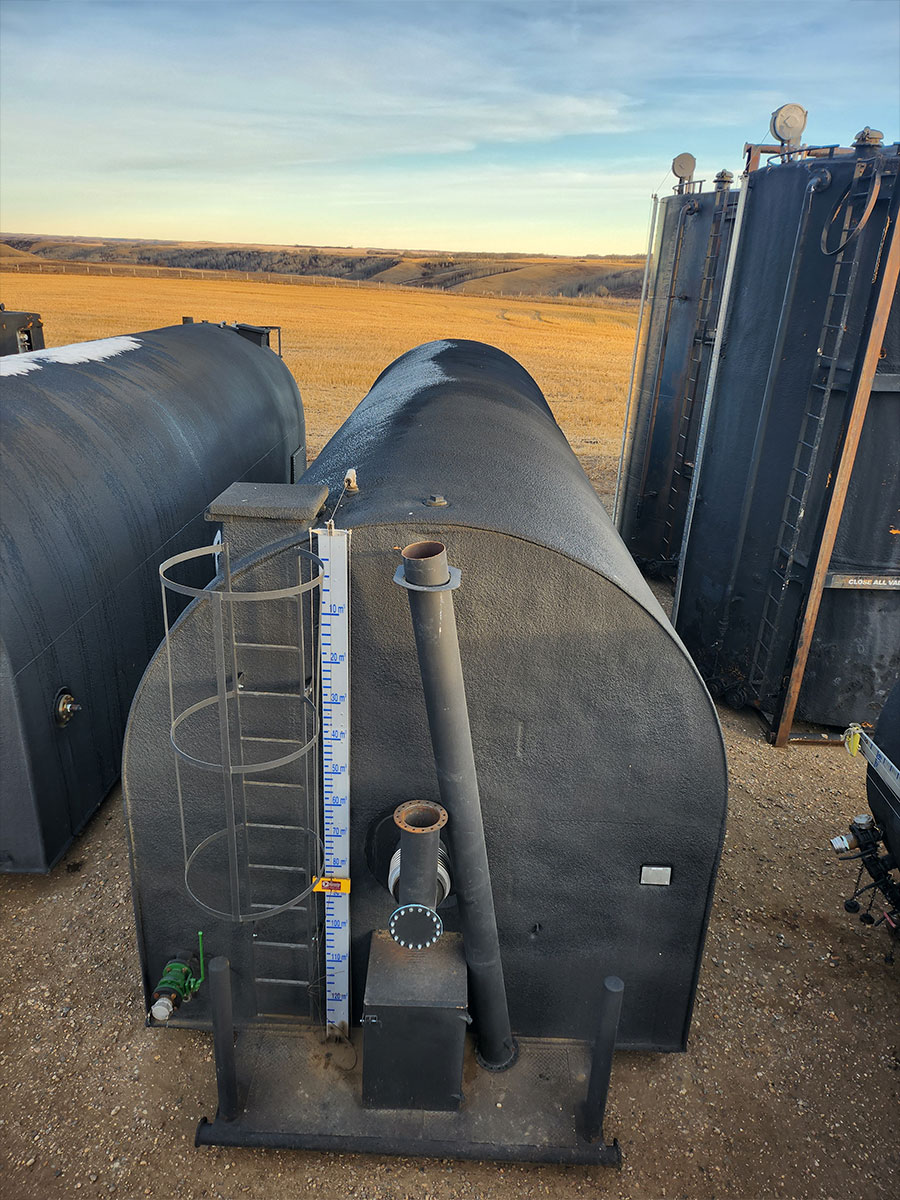

- (1) Roof Access Ladder and Collapsible Platform
- Full Unit is complete with 1.5” Sprayed Urethane with 20mil Black Elastomer Sealer

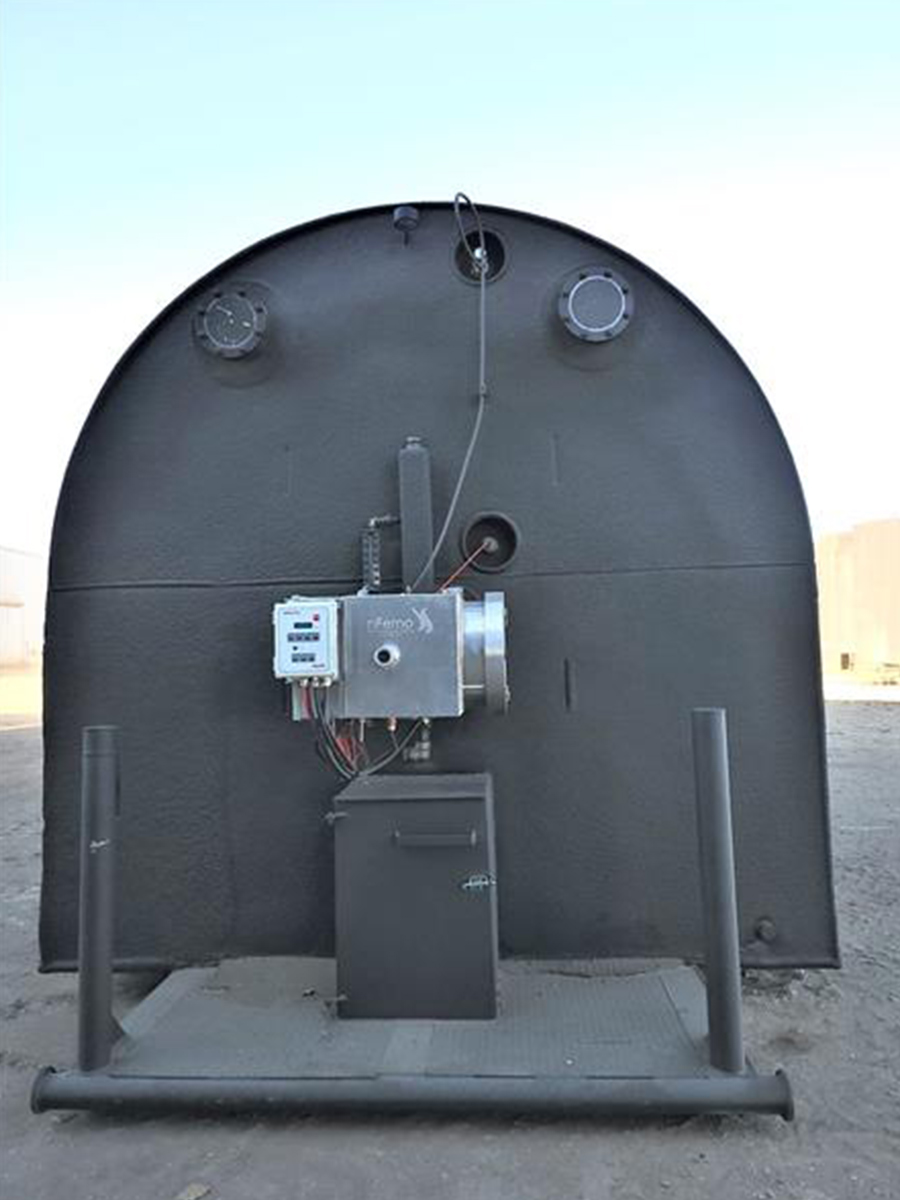

- (1) 8” within 12” ECO Firetube – Circulating, Double Walled, Burner Stack c/w: Oil —- Firetube runs the full length of 800bbl tank
- (2) 4” gate valves c/w camloks and caps, (3) 4” Ball Valves c/w camloks and caps, 1” sample connection valves, Temp Indicators, and blinds for full 800bbl production tank.
New and used purchase pricing and rental options are available.
