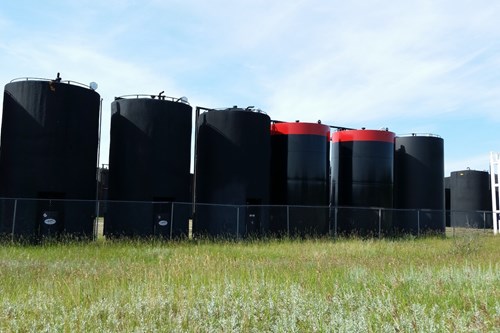

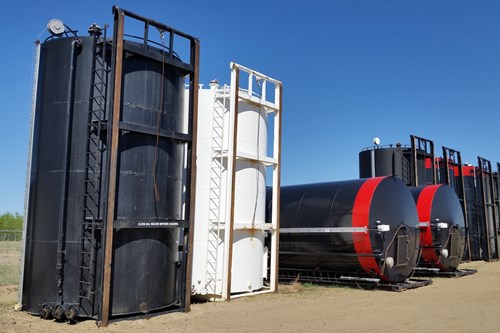

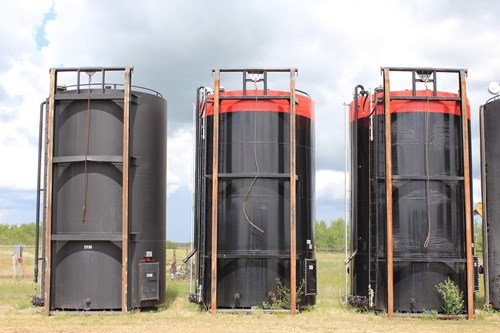

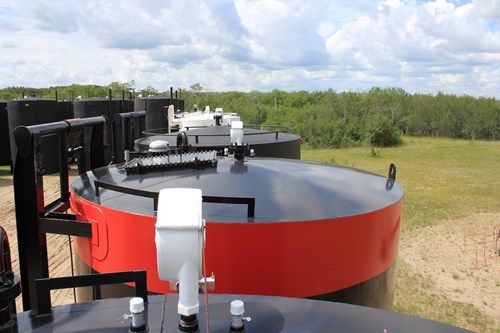

Standard Production Tanks
Our Standard 400bbl (64m3) Production Tanks are built to API 12F and are 12’ in diameter and 20’ feet tall. Units have a 8” 3 saddle “L” skid complete with a flat ¼” floor and 3/16” shell and roof.
All of our stock rental tanks are standardly setup with the following:

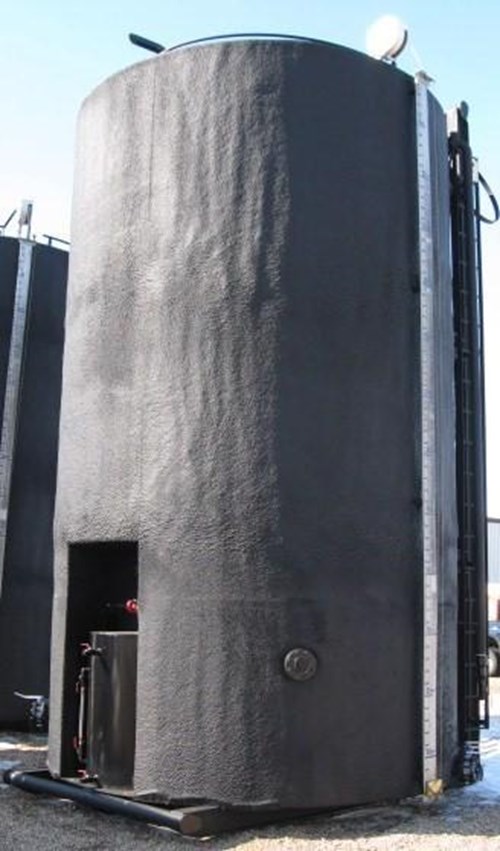

- External paint or external insulation
- Flat-bottomed floor or sloped-bottomed floor
- 8” 3 saddle “L” skid

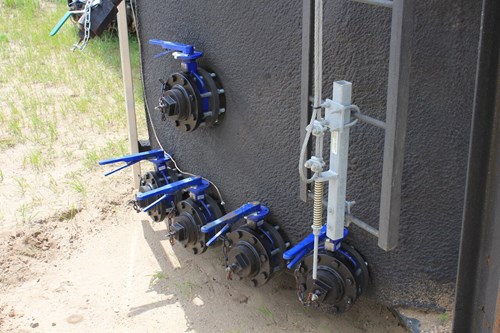

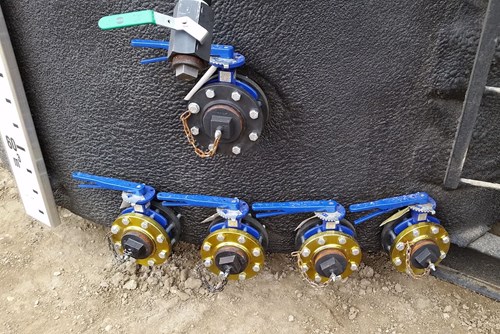

- Standard inlet, outlet and vent nozzles c/w valves and plugs.
- 3” external VRU downcomer.

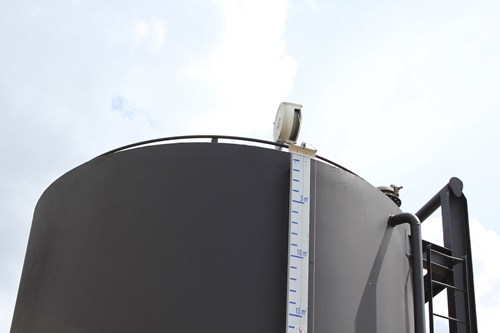

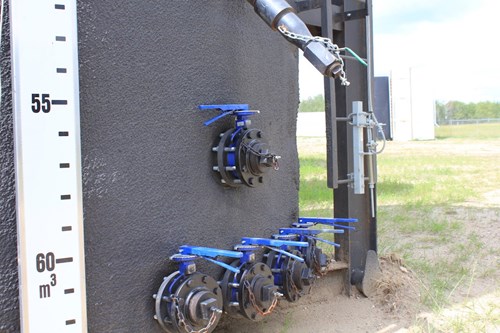

- Atmospheric or sour sealed gaugeboard c/w poly float and internal guides
- Sour sealed thief hatch
- Access ladder
- 2’x 4’ manway

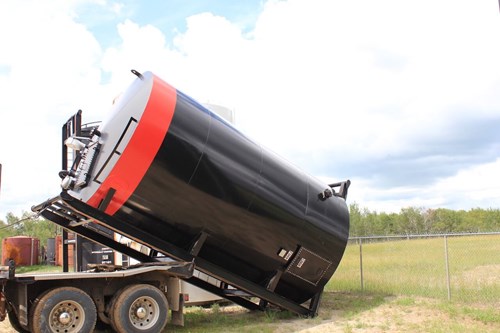

- Hauling pads
- Lifting lugs
- Heating source: (U-Tube Burner System or Catadyne Heating System)
Options:
- Internal coating
- Extra nozzles
- Fall arrest systems
- Envirovault enclosure
New and used purchase pricing and rental options are available.

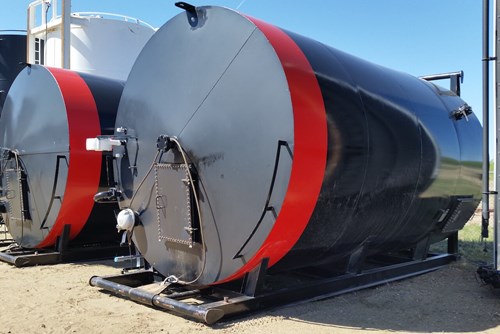

FRAC Tanks
Our Standard 400bbl (64m3) FRAC Tanks are built to API 12F and are 12’ in diameter and 20’ feet tall. Units have a 8” 3 saddle “L” skid complete with a sloped ¼” floor and 3/16” shell and roof.
All of our stock rental tanks are standardly setup with the following:
- External paint
- Sloped bottomed floor
- 8” 3 saddle “L” skid
- Standard inlet, outlet and Vent nozzles c/w valves and plugs.
- 3” external VRU downcomer
- Atmospheric or sour sealed gaugeboard c/w poly float and internal guides
- Sour sealed thief hatch
- Access ladder
- 2’x 4’ manway
- Lifting lugs
- Envirovault enclosure
- Heating source: (U-Tube Burner System or Catadyne Heating System)
Options:
- Internal coating
- Extra nozzles
- Fall arrest systems
New and used purchase pricing and rental options are available.
