200 bbl Tanks

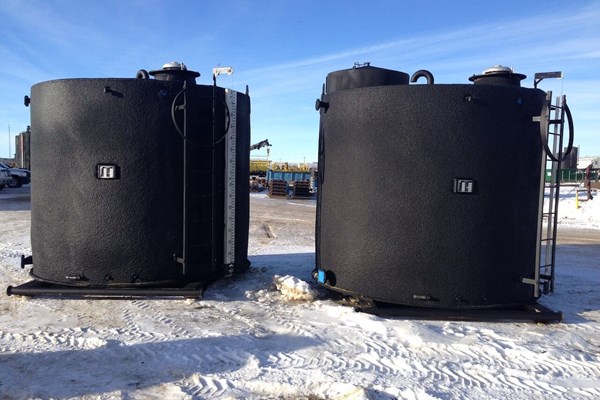

Our standard 200bbl (32m³) Production Tanks are built to API 12F and are 13’6” in diameter and 11’4” feet tall. Units have a 10” 4 beam bottom skid complete with a flat ¼” floor and ¼” shell and roof.

All of our stock rental tanks are standardly setup with the following:

• External paint or external insulation

• Flat bottomed floor or sloped bottomed floor

• 10” 4 saddle “L” skid

• Standard inlet, outlet and vent nozzles c/w valves and plugs

• 3” external VRU downcomer

• Atmospheric or sour sealed gaugeboard c/w poly float and internal guides

• Sour sealed thief hatch

• Access ladder

• 2’x 4’ manway

• Lifting lugs

• Heating source: (U-Tube Burner System or Catadyne Heating System)

Options:

• Internal coating

• Extra nozzles

• Fall arrest systems

• Envirovault enclosure
